Multipurpose Float Valve

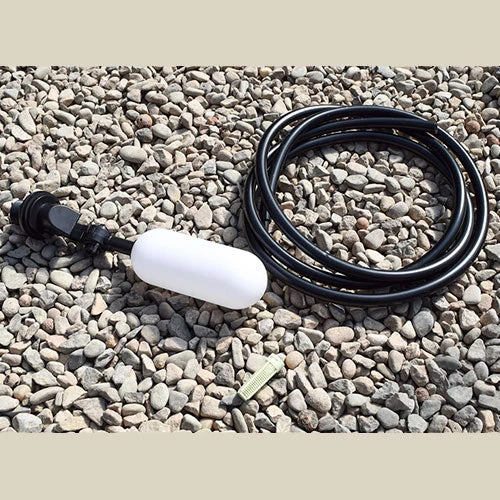

Kit Includes – 1x Float Valve, 1.5m of tubing, 1x Outlet Fitting with Filter.

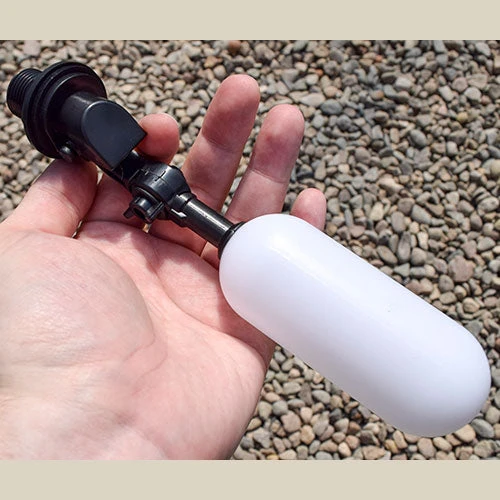

Valve Size – When horizontal (tank full) whole valve is 170mm long, When the tank is empty (valve drooping) 140mm of tank height is required. The white float itself is  40mm diameter and 95mm Long.

If you would like a tank plus float valve please CLICK HERE for full details.

How to use –

 – Make a 12mm hole in the side of your water tray or reservoir (please note this will need to be deep enough to accommodate the valve) positioning the hole at the height that you want to maintain the water level at.

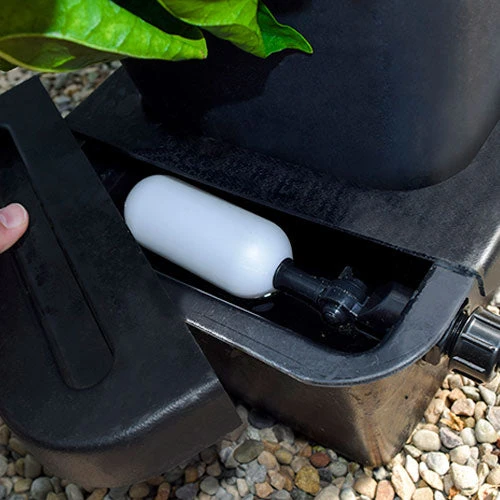

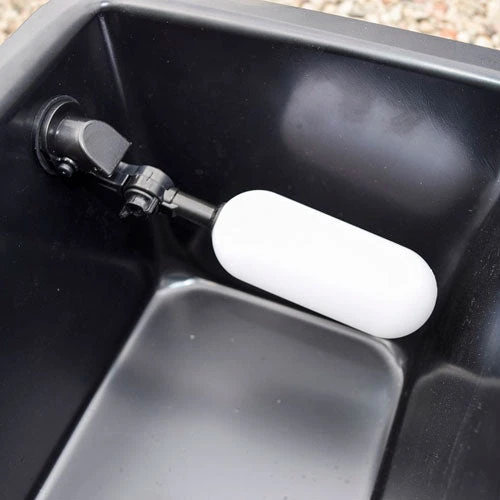

 – Push the float valve through this hole, with the main body of the valve inside your water tray or reservoir.
 – Push one end of the tubing (fitted with the rigid fitting and filter) into your float valve.
 – Make a 9mm hole in your chosen header tank (tank not supplied).
 – Fit the rubber grommet into the hole.
 – Push the other end of the tubing (fitted with the rigid fitting and filter) into this grommet.
 – Fit the white plastic mesh filter over the protruding tube on the inside of your tank.
 – Position your header tank 20cm above your water tray or reservoir.
 – Fill your water tray or reservoir with water up to the level of the centre of the valve.
 – Fill your header tank.

PLEASE NOTE: This valve is only suitable for use with a header tank it is not suitable for use with mains pressure or pumped water.
